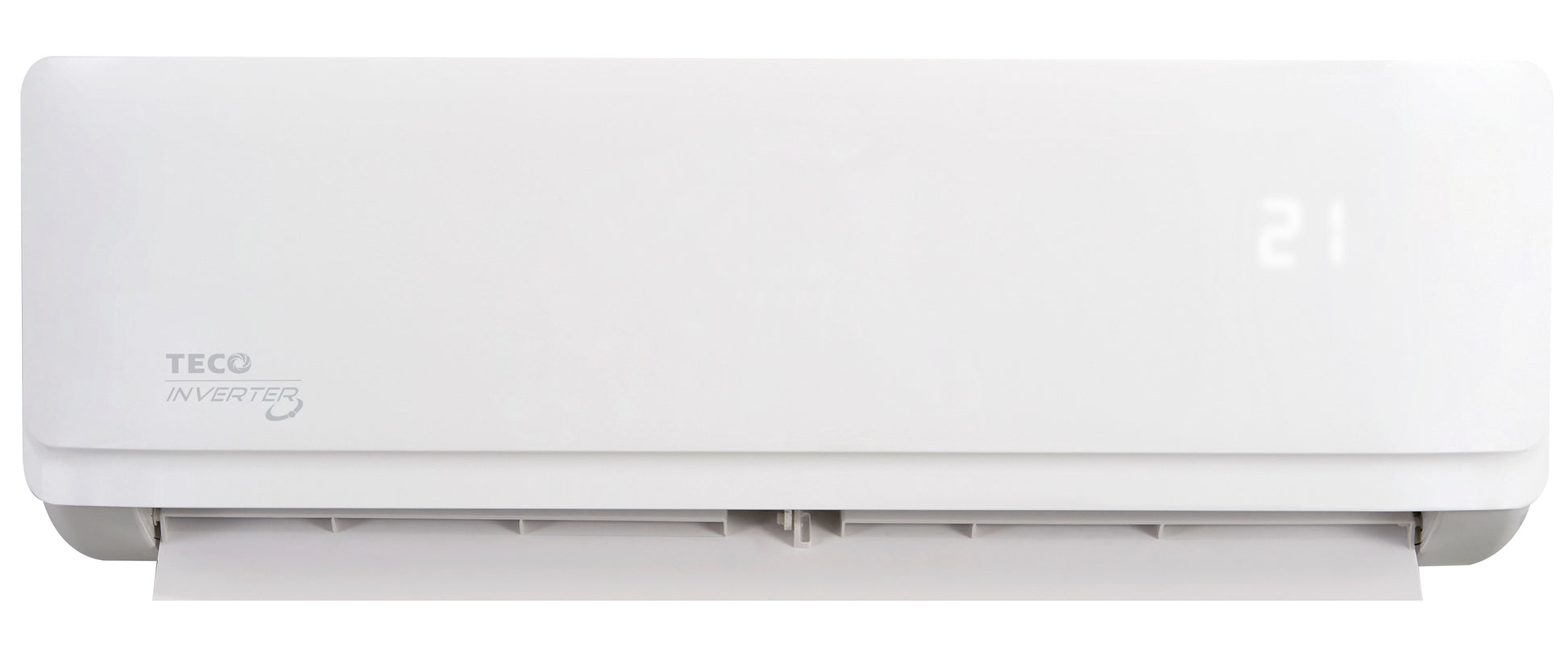

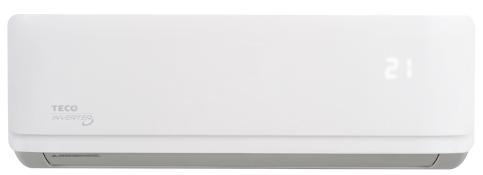

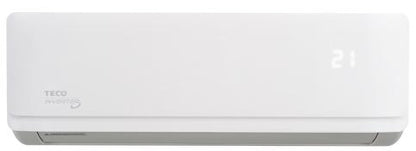

Teco 3.5kW Reverse Cycle Inverter Split System

INDOOR MODEL No.

TWS35HVEM

OUTDOOR MODEL No.

TSO35HVEM

C
O
O
L
I
N
G

Capacity (MEPS)

kW

3.50 (1.40 - 4.20)

Running Current

Amps

4.0

Input

Watts

870

A.E.E.R. Rating

4.00

Star Rating

3.5

H
E
A
T
I
N
G

Running Current

kW

3.60 (1.45-4.32)

Capacity (MEPS)

Amps

4.0

Input

Watts

890

A.E.E.R. Rating

4.03

Star Rating

3.5

Power Supply

Volts

220-240

Phase - Frequency

Ph - Hz

1 - 50

Power Supply Attachment

Outdoor

Moisture Removal

L/Hr

1.2

Indoor Fan Speeds

(4 + Turbo User Select)

Indoor Cooling Air Flow (Max)

L/s

194

Compressor Type

Rotary

I.U. Sound Pressure Level

dB(A)@1m

44/42/36/34/28

O.U. Sound Pressure Level

dB(A)@1m

55

O.U. Sound Power Level

dB(A)

60

Refrigerant Type

R410a

Connection Pipe Size (Liquid/Gas)

mm (inch)

6.35 / 12.7 (1/4 - 1/2)

Max. Pipe Length

m

25

Max. Height Difference

m

10

Pipe Connection Method

Flare

Indoor Dimensions (HxWxD)

mm

297 x 802 x 189

Indoor Net Weight

kg

8.3

Outdoor Dimensions (HxWxD)

mm

554 x 800 x 333

Outdoor Net Weight

kg

32.1

Ambient Temperature (Cool/Heat)

oC

0~50 / -15~30
