Teco 3.6kW 3d Inverter Reverse Cycle Spilt System

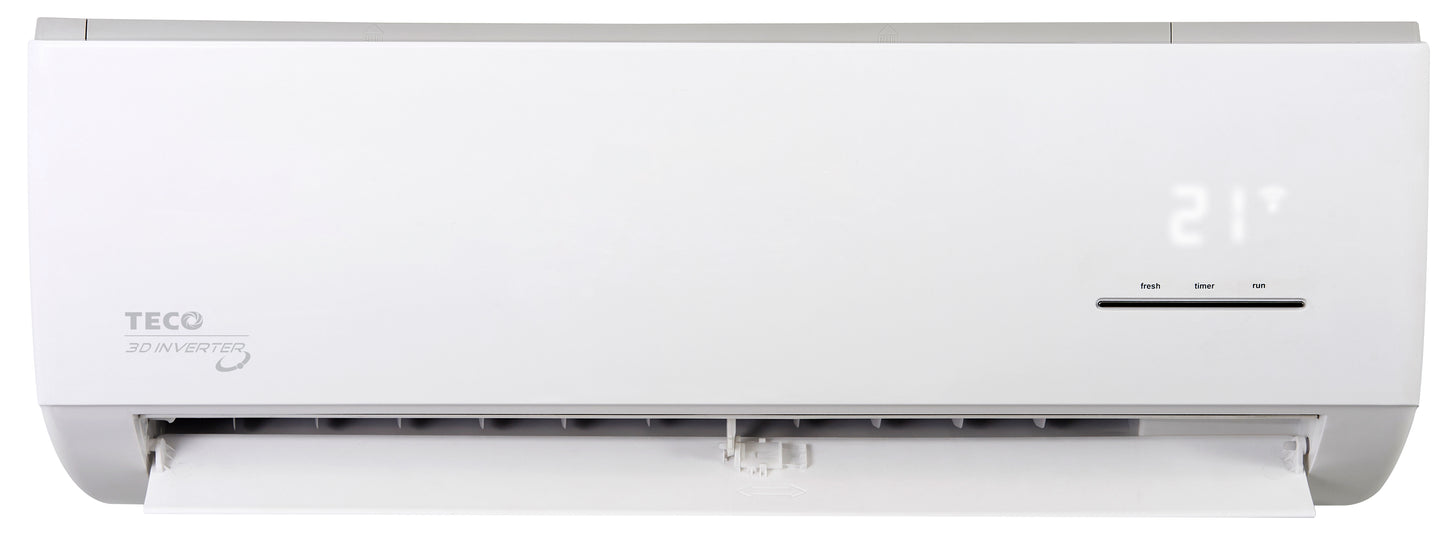

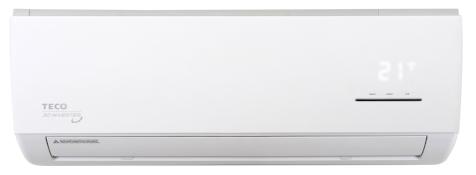

INDOOR MODEL No.

TWS37H3DVEM

OUTDOOR MODEL No.

TSO37H3DVEM

C
O
O
L
I
N
G

Capacity (MEPS)

kW

3.60 (1.55-4.70)

Running Current

Amps

3.8

Input

Watts

830

A.E.E.R. Rating

4.32

Star Rating

4.0

H
E
A
T
I
N
G

Running Current

kW

3.90 (1.55-4.85)

Capacity (MEPS)

Amps

4.0

Input

Watts

890

A.E.E.R. Rating

4.37

Star Rating

4.0

Power Supply

Volts

220-240

Phase - Frequency

Ph - Hz

1 - 50

Power Supply Attachment

Outdoor

Moisture Removal

L/Hr

1.2

Indoor Fan Speeds

12 (4 + Turbo User Select)

Indoor Cooling Air Flow (Max)

L/s

227

Compressor Type

Rotary

I.U. Sound Pressure Level

dB(A)@1m

44/42/38/31/24

O.U. Sound Pressure Level

dB(A)@1m

56

O.U. Sound Power Level

dB(A)

61

Refrigerant Type

R32

Connection Pipe Size (Liquid/Gas)

mm (inch)

6.35 / 12.7 (1/4 - 1/2)

Max. Pipe Length

m

25

Max. Height Difference

m

10

Pipe Connection Method

Flare

Indoor Dimensions (HxWxD)

mm

325 x 964 x 222

Indoor Net Weight

kg

10.9

Outdoor Dimensions (HxWxD)

mm

554 x 800 x 333

Outdoor Net Weight

kg

33.0

Ambient Temperature (Cool/Heat)

oC

0~50 / -15~30
