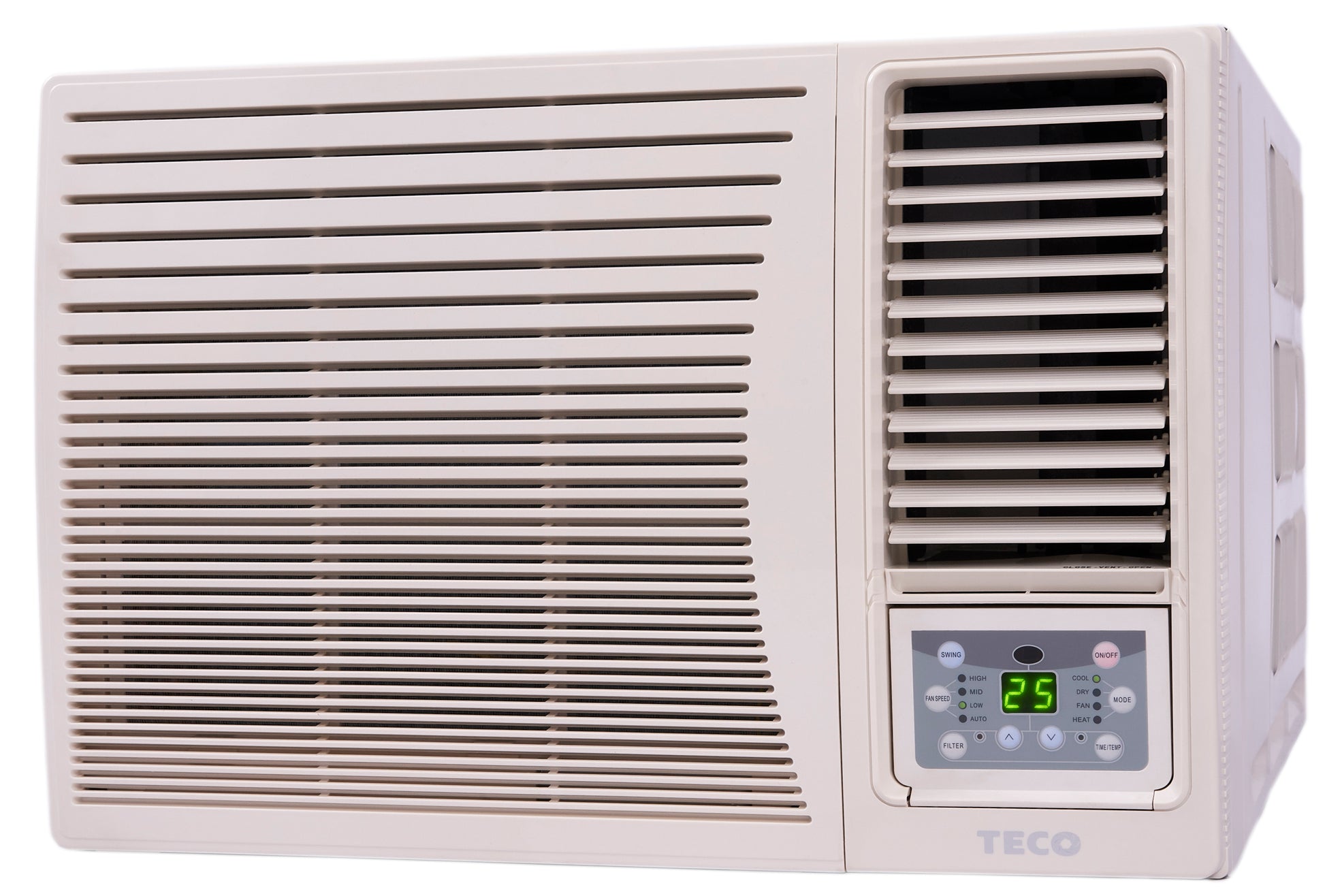

Teco 3.9kW Reverse Cycle Window Wall

 Model No.

TWW40HFCG

Cooling Capacity (kW)

3.90

Heating Capacity (kW)

3.60

Power Supply

220 - 240

Phase - Frequency

1 - 50

Plug Size

10

Run Current Cooling (A)

5.13

Run Current Heating (A)

4.74

Cooling Input (W)

1180

Heating Input (W)

1090

Moisture Removal (L/s)

1.5

A.E.E.R

3.3

A.C.O.P

3.3

Star Rating Cooling

2

Star Rating Heating

2

Fan Speeds

3 + Auto

Indoor Cooling Air Flow (Max)

(L/Hr)

186

Compressor Type

Rotary

Unit Dimensions

H x W x D (mm)

428 x 660 x 700

Net Weight

57

Recommended Cut-Out Size

HxW(mm)

433 x 665

ID Sound Pressure

dBA@1m

50 / 48 / 46

OD Sound Pressure

dBA@1m

58 / 56 / 54

OD Sound Power

dBA

68 / 66 / 64

Refrigerant Type

R32

Cooling Outdoor Op. Temp.

°C

 18~43

Heating Outdoor Op. Temp.

°C

 -7~30
